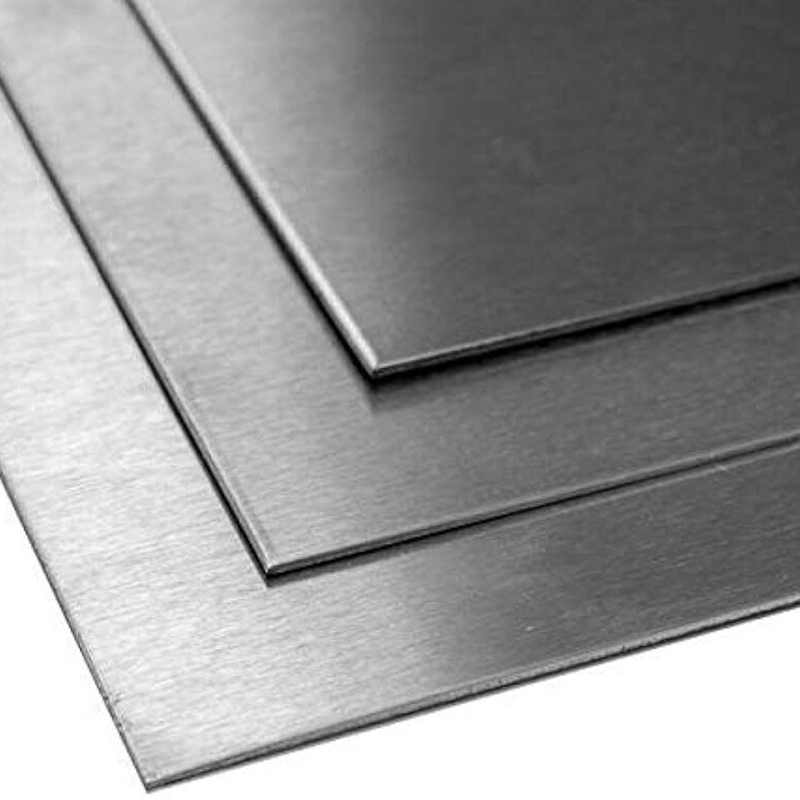

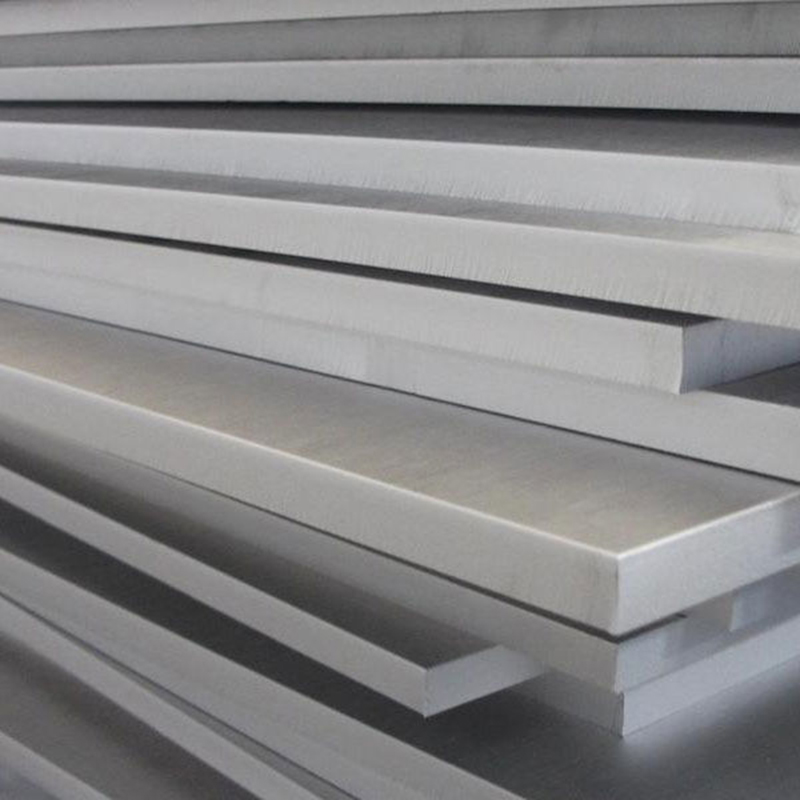

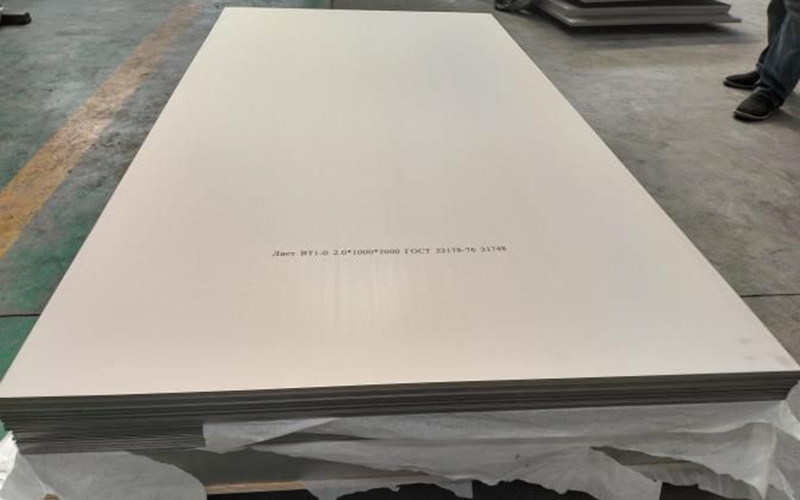

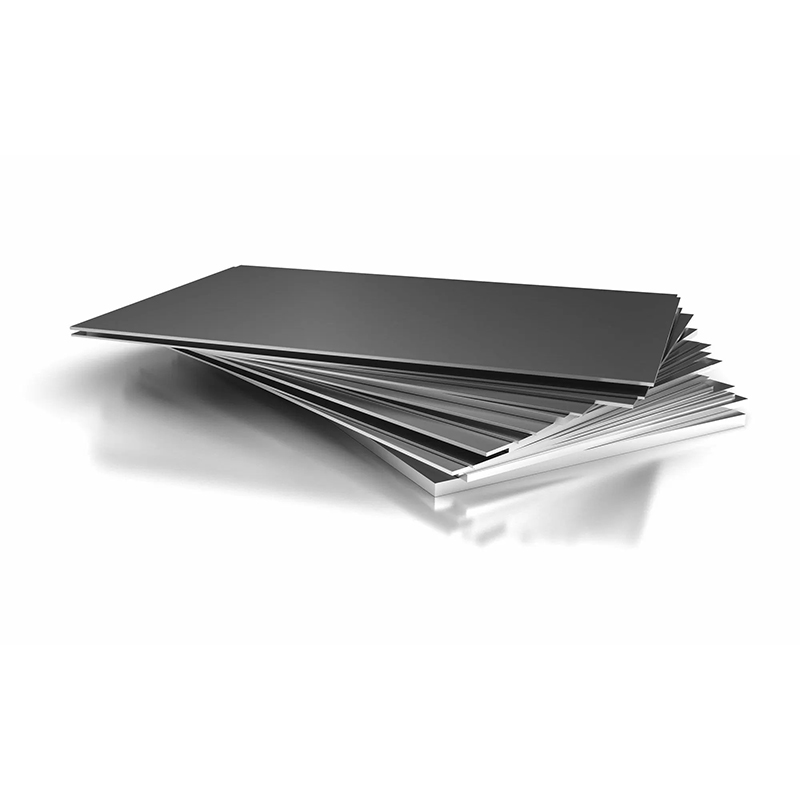

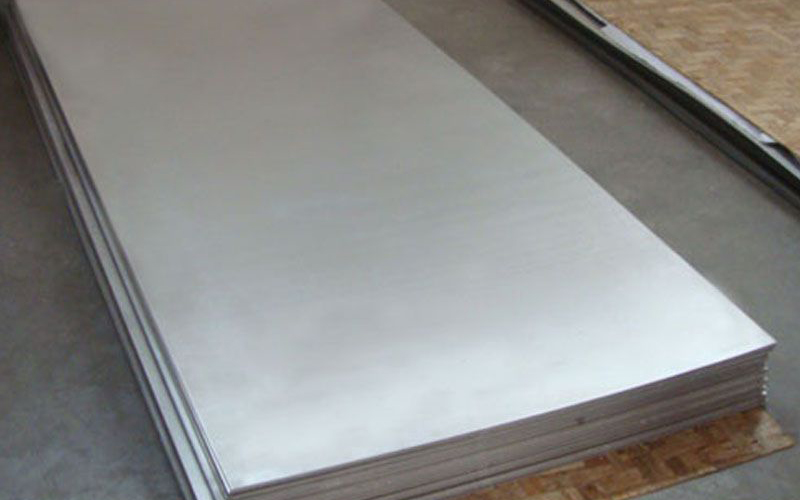

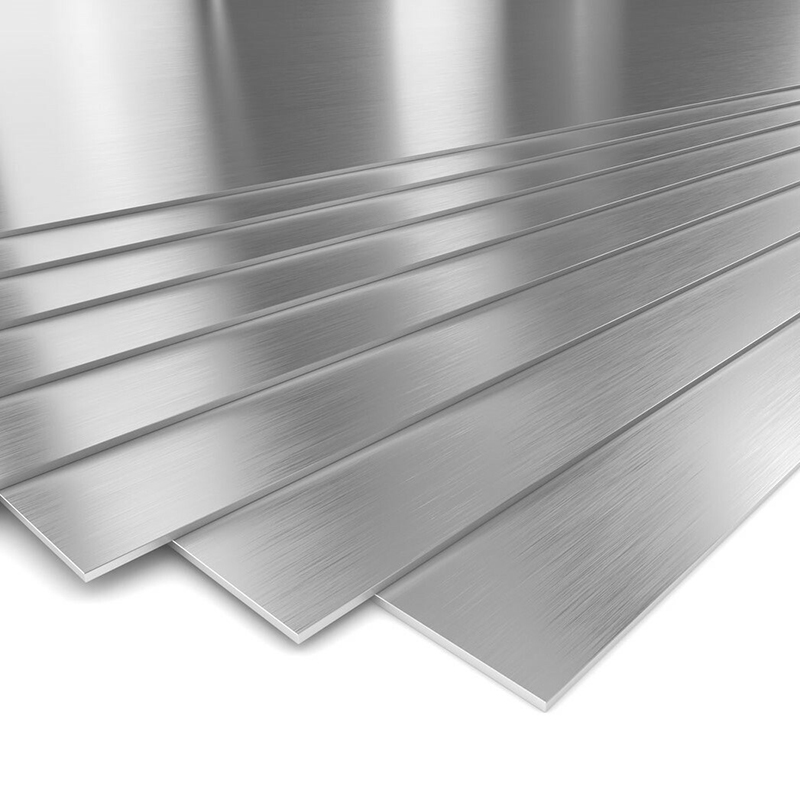

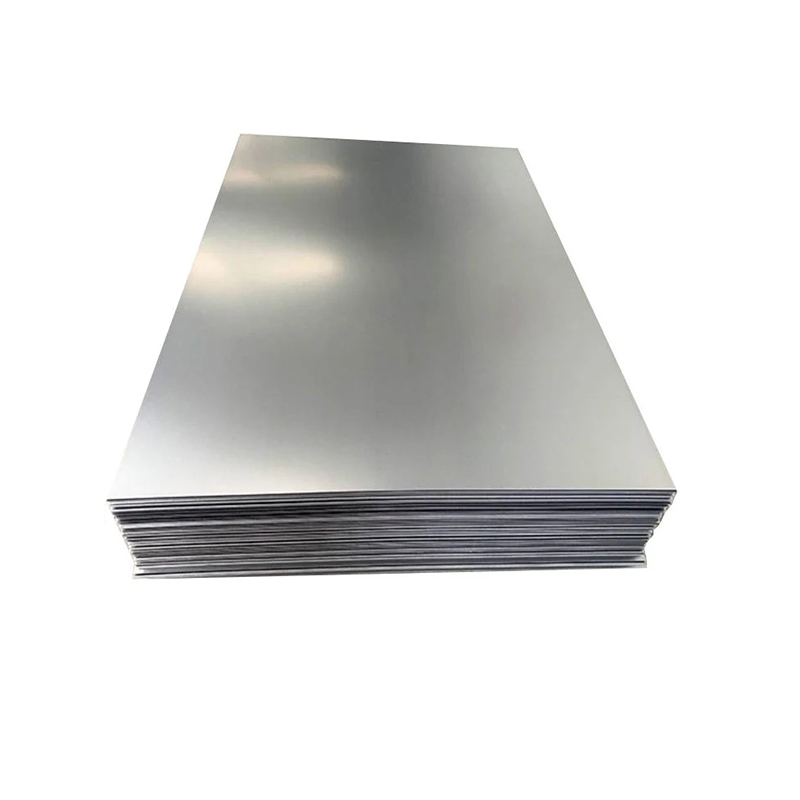

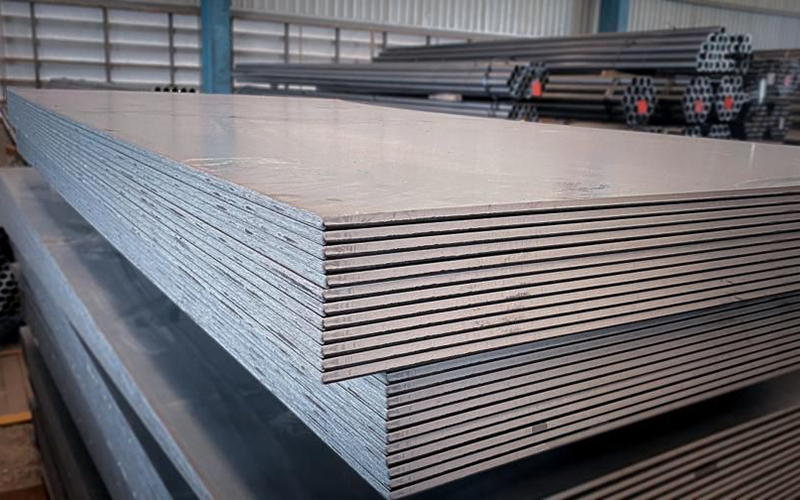

Factory direct sales GR1 Gr2 GR5 Titanium Sheet/Plate
Product introduction
Titanium Sheet and Plate. Extensive size range for fabrication and engineering applications. Precision cut with custom surface finishes to meet your specification. Our supply includes Commercially Pure titanium along with Titanium Alloys including Grade 5 and Grade 9. We offer titanium sheets produced against all major production standards including ASTM (B265), GB, DIN and JS.
Surface Finishes
Polished, Mill, Pickling, Painted, Brushed or Blasted
Features
1. High strength, low density
Titanium plate has the characteristics of high strength and low density, which makes it an excellent lightweight high-strength material. Compared with aluminum alloy, titanium plate strength is higher, but the density is only about half, so it has a wide range of applications in aerospace, automobile manufacturing and other fields.
2. Strong corrosion resistance
Titanium plates have strong corrosion resistance, especially in oxidizing media. It is not easy to rust, can be used in harsh environments for a long time, so it is widely used in chemical industry, Marine engineering and other fields.
3. Good high temperature performance
Titanium plates can work at high temperatures and can maintain their excellent mechanical properties even at high temperatures of about 600 ° C. This makes it widely used in high temperature environment such as high temperature furnace and aircraft engine.
4. Good biocompatibility
Titanium plates have good biocompatibility and can be fully accepted by human tissues, so they are widely used in medical fields, such as dental implants and artificial joints.
Product Paramenters
Size: The size range of titanium plate is wide, can be from thin plate to thick plate, the specific size includes thickness from 0.5mm to 60mm, width (1000-2500)mm, length is less than 6000mm.
Material: The main materials of titanium plate include TC4/GR5, the titanium alloy of these materials has excellent corrosion resistance, small density, high specific strength and better toughness and weldability.
Standard: titanium plate meets a variety of standards, such as GB/T3621, GB/T13810, ASTM B265, etc. these standards ensure the quality and performance of titanium plate.
Surface treatment: titanium plate can be a variety of surface treatment, such as pickling, sandblasting, polishing, to meet different needs of use.
Shape: The shape of titanium plate includes thin plate, thick plate, thick plate, provides a flexible choice.
Status: titanium plate can be in cold rolling (Y), hot rolling (R), annealing (M) and other states, these states determine the mechanical properties and use characteristics of titanium plate 2.
Mechanical properties: TC4 mechanical properties of titanium plate include tensile strength Rm/MPa≥895, yield strength Rp0.2/MPa≥825, elongation A(%)≥10, section shrinkage Z(%)≥25, These data show the strength and toughness of titanium plate.
Chemical composition: TC4 titanium plate containing titanium (Ti) allowance, iron (Fe) 0.30, or less carbon (C) 0.10, or less nitrogen (N) 0.05 or less, hydrogen (H), 0.015 or less oxygen (O) of 0.20 or less, aluminum (Al) 5.5 ~ 6.75, vanadium (V) 3.5 ~ 4.5, these chemicals guarantee the characteristics and application scope of titanium plate.
Application: titanium plate because of its excellent performance, is widely used in many fields, including aviation, medical, chemical industry and so on.
Product Applications

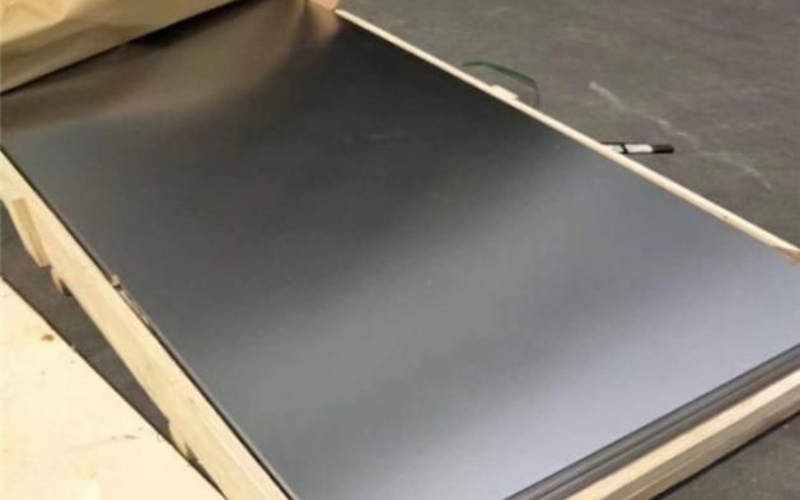

Package
Standard export wooden box packing
